Coagulation

Automatic coagulation systems for laboratory workflows and reliable sample processing.

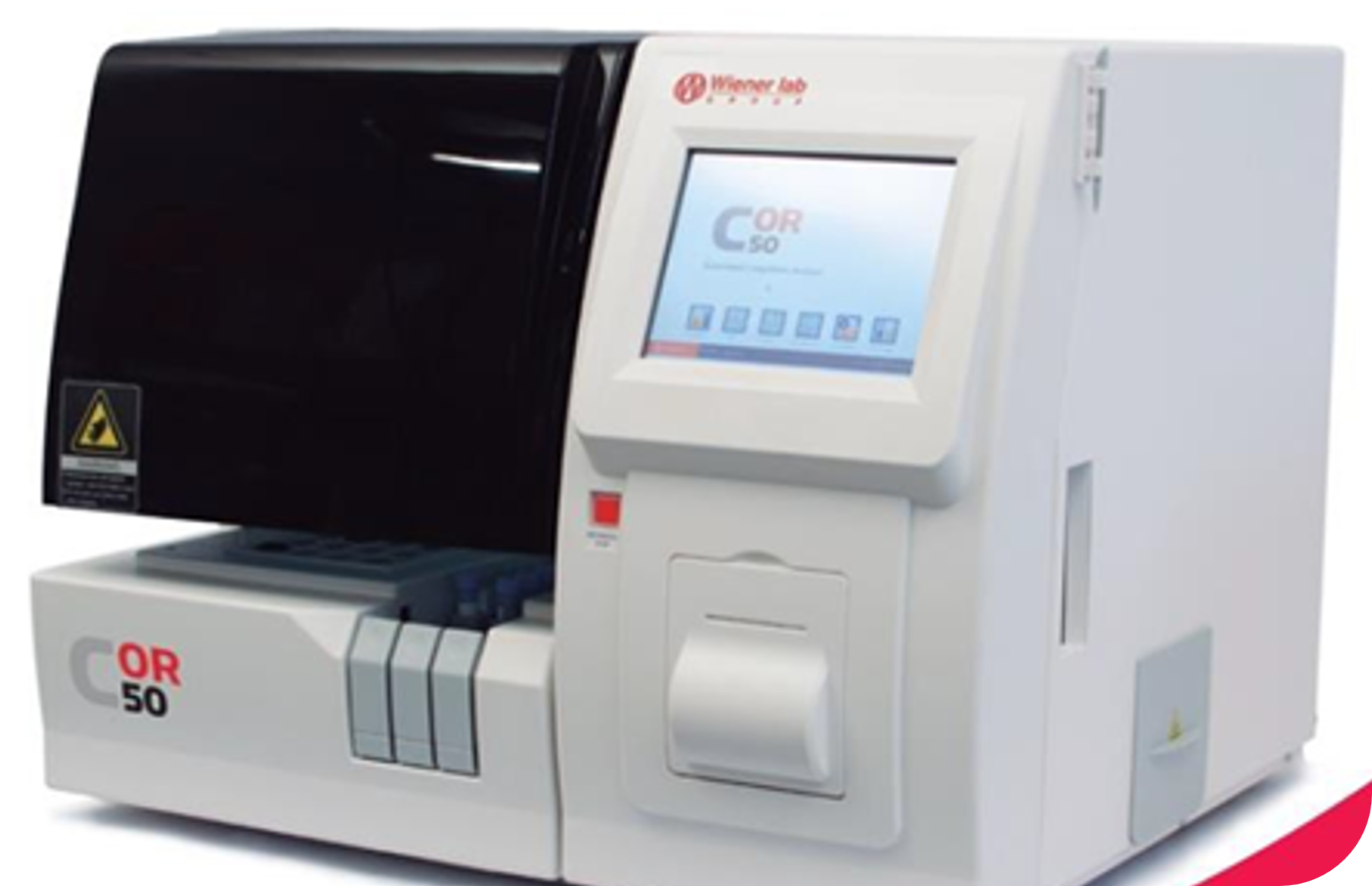

Automatic COR50 coagulation system
Coagulation System

Automatic COR50

Innovative coagulation system.

  • System: random access system
  • Compact, easy to use and maintain
  • Integrated computer - touchscreen
  • Water consumption: 0.5 L/h
  • Testing: up to 100,000 test results and 10,000 reaction curves can be stored
  • Manual or automatic calibration with up to six-point curves
  • User-defined reflex testing and repeat test rules
  • Open system allowing the use of various types of reagents
  • Sample trays: 3 sample carriers with 9 positions each
  • Continuous loading/access
  • Sample volume: 50 uL for PT, APTT and TT; 10 uL for fibrinogen and ATIII; 50 uL for D-Dimer
  • Integrated barcode reader optional
  • Reagent tray: 20 reagent positions plus 3 additional positions for diluents and cleaning solution
  • The system is cooled to <= 16 C
  • Adapters for different bottle sizes

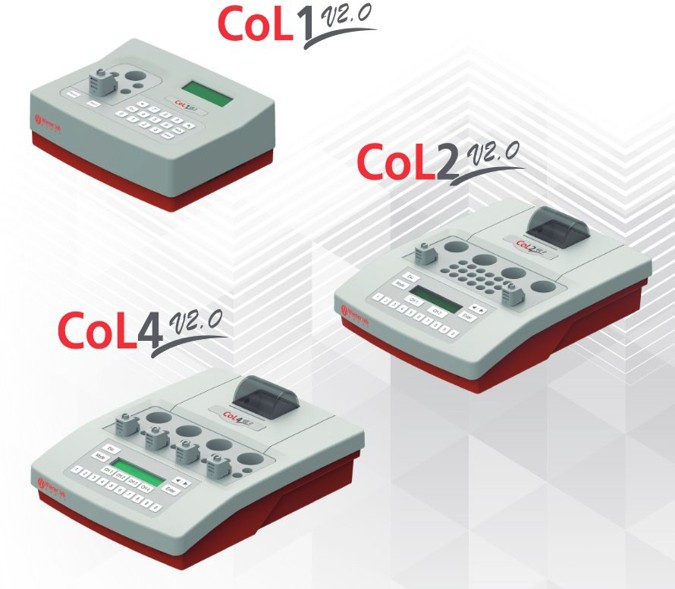

CoL 1 CoL 2 CoL 4 coagulation systems
Coagulation System

CoL 1 / CoL 2 / CoL 4

Compact coagulation system range for essential and extended laboratory coagulation workflows.

  • Compact coagulation solutions CoL 1, CoL 2, and CoL 4
  • Photometric and turbodensitometric measurement principles
  • Coagulometric, chromogenic, and turbidimetric methods
  • Microcuvettes with 150-300 uL volume
  • LCD display with 2 rows of 20 characters
  • Membrane keyboard
  • Open system with editable test parameters
  • 15 programmable tests
Technical data

CoL 1 / CoL 2 and CoL 4 comparison

Parameter CoL 1 / CoL 2 CoL 4
Measurement principles Photometric and turbodensitometric. Coagulometric, chromogenic, and turbidimetric methods. Photometric and turbodensitometric. Coagulometric, chromogenic, and turbidimetric methods.
Measuring module Controlled temperature 37 C. 1 measuring channel with two wavelengths: 405 nm and 750 nm. 1 reagent position. 4 cuvette incubation positions. Automatic start with reagent addition. Controlled temperature 37 C. 2 or 4 measuring channels with two wavelengths: 405 nm and 750 nm. 4 reagent positions, one with mixer function. 18/16 cuvette incubation positions. Automatic start with reagent addition.
Test volume Microcuvettes with 150-300 uL volume Microcuvettes with 150-300 uL volume
Display LCD - 2 rows of 20 characters LCD - 2 rows of 20 characters
Control panel Membrane keyboard Membrane keyboard
Communication RS232 for printer/barcode reader, USB Host, SD-Card RS232 for printer/barcode reader, USB Host, SD-Card
Printer Connection option for external thermal printer Integrated thermal printer
Dimensions/weight 21 x 15.5 x 8 cm; 0.7 kg 26 x 33 x 9 cm; 3.9 kg
Available tests TP, APTT, Fib, TT, intrinsic and extrinsic factors, ATIII, PC, dRVVT, DDIM TP, APTT, Fib, TT, intrinsic and extrinsic factors, ATIII, PC, dRVVT, DDIM
Software/hardware Open system. Editable and copyable test parameters. 15 programmable tests. Automatic calculation: seconds, INR, %, g/L, mg/dL, Ratio, mE, ug/mL. Editable calibration curve up to 9 points. Open system. Editable and copyable test parameters. 15 programmable tests. Automatic calculation: seconds, INR, %, g/L, mg/dL, Ratio, mE, ug/mL. Editable calibration curve up to 9 points.
Power supply 100V-240V, 47-63Hz, 260mA 100V-240V, 47-63Hz, 260mA
Output 12VDC / 1.25A 24VDC / 3.75A
Options Connection to external thermal printer. Barcode reader connection. Connection to external thermal printer. Barcode reader connection.
